Specifications

Aeronautical Excellence, By the Numbers.
AG-5B Tiger – Specifications

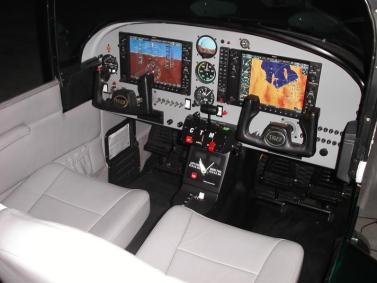

G1000
Garmin G-1000 Electronic Flight Deck
PERFORMANCE
Top speed @ sea level 148 kts 274 km/h
Speed (mid-weight cruise) 143 kts 264 kn/h
75% power, cruise altitude 8500 ft 2591 m
Fuel Consumption 10.7 gph 40.5 l/h
Endurance 4.7 hr 4.7 hr
Range (no reserve) 681 nm 1262 km
Range (45 minute reserve) 572 nm 1059 km
Rate of climb @ sea level 850 fpm 4.32m/sec
Service ceiling 13,800 ft 4206 m
Takeoff distance (over 50ft obstacle) 1550 ft 473 m
Landing distance (over 50ft obstacle) 1120 ft 341 m
Stall speed, flaps down (VsO) 53 kts 98 km/h
Stall speed, flaps up (Vs1) 56 kts 104 km/h

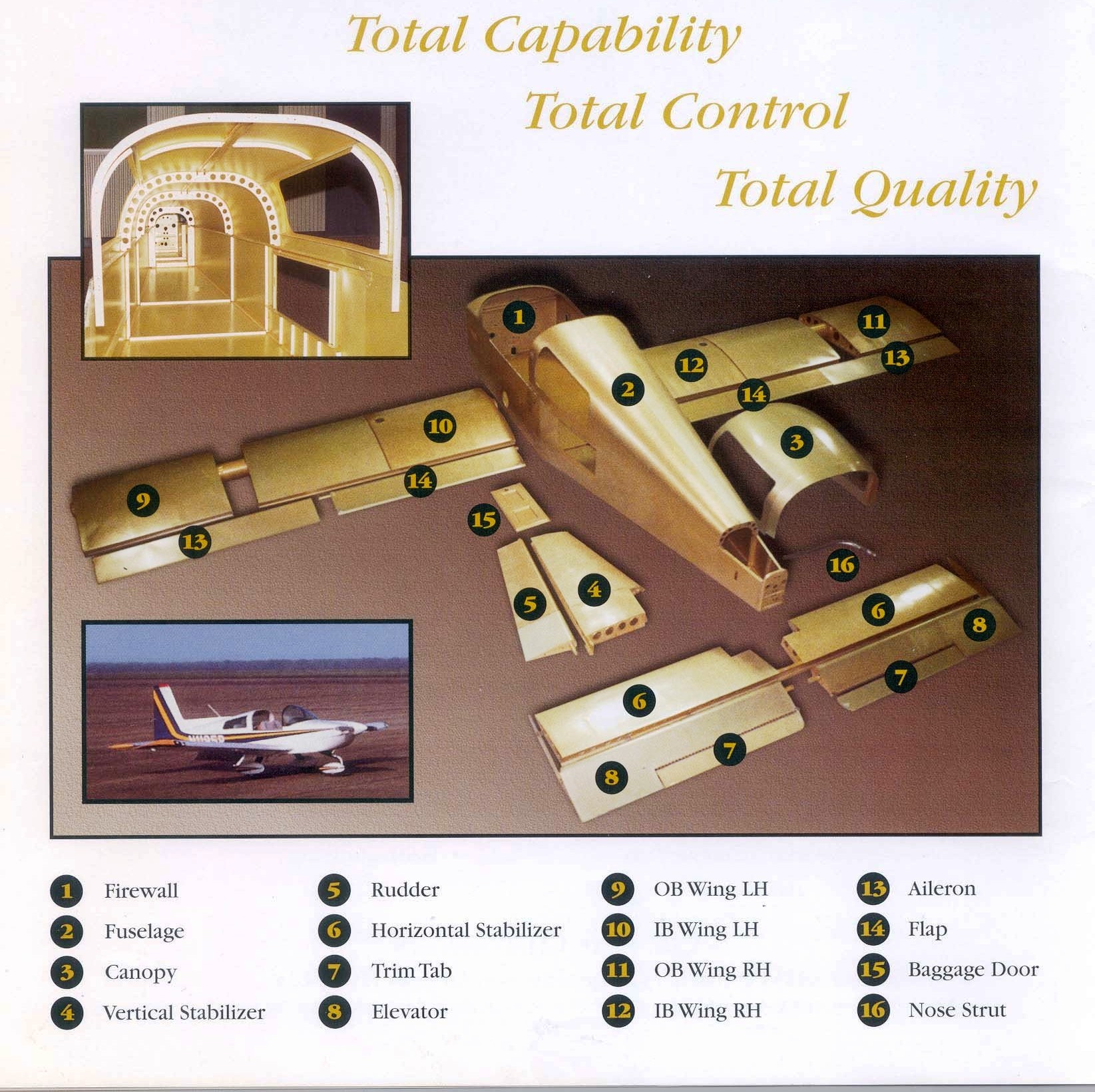

 Kit BondmentsMilitary grade bonded structure
AIRFRAME
Max Gross Weight on Ramp 2400 lbs 1089 kg
Empty weight 1500 lbs 680 kg
Useful load 900 lbs 408 kg
Baggage max weight 120 lbs 54 kg
Wing span 31.5 ft 9.6 m
Length 22.0 ft 6.7 m
Height 8.0 ft 2.4 m
Fuel capacity 52.6 gal 199 l
Useable fuel 51 gal 193 l

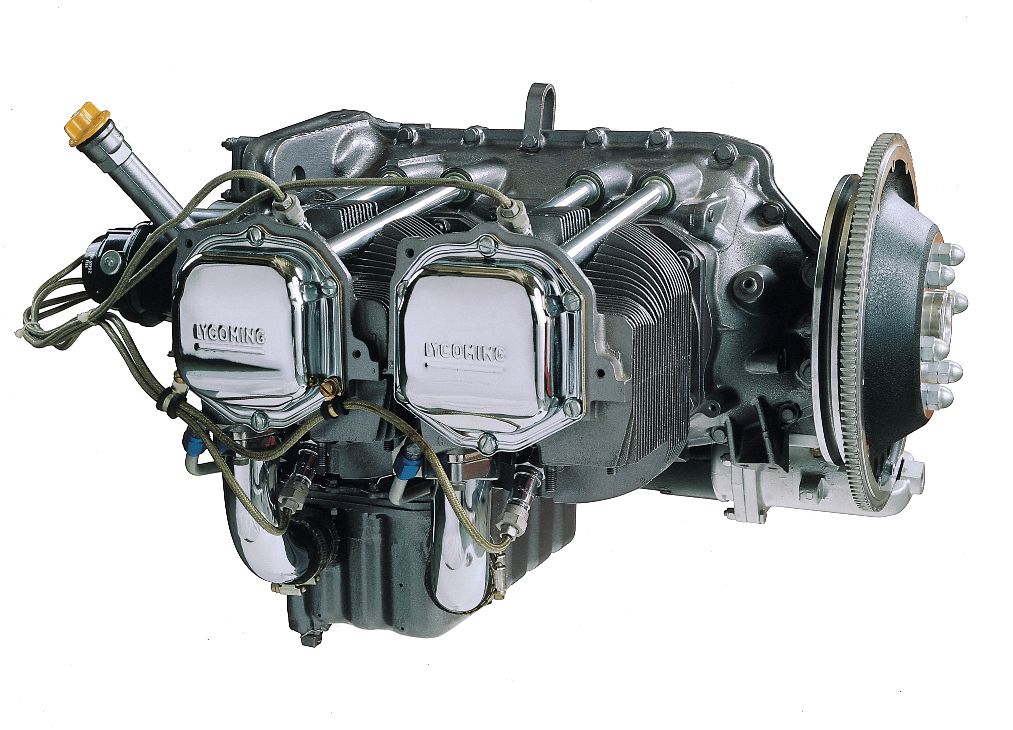

 O-360 A4KIncredibly reliable Lycoming Engine
POWERPLANT
Engine 180 hp Lycoming 0-360-A4K
Oil capacity 8.0 qt 7.5 l
Propeller Sensenich (2 blade fixed pitch)
Propeller diameter 76î 1.93 m
